YG500
Compact access
- Working width
- 500 mm
- Pump flow
- 100 m³/h
- Weight
- 320 kg
- Main motor
- 22 kW
Remote-controlled sludge removal
Desilting robots built for difficult, dirty work
Move settled sludge from ponds, tanks, channels and industrial sites while operators remain at a safer working position.
- 500–1500 mm working widths
- Up to 300 m³/h pump flow
- Remote control
5 modelsfor different site scales
50 mstandard hydraulic oil hose
0–30 mpumping head
Factory supportbefore and after delivery
Model range
Start with working width and required flow
Final configuration depends on sludge composition, particle size, pumping distance, water depth and site access. Prices are provided only after technical review.
YG600
More coverage
- Working width
- 600 mm
- Pump flow
- 100 m³/h
- Weight
- 350 kg
- Main motor
- 22 kW
YG900
Industrial balance
- Working width
- 900 mm
- Pump flow
- 200 m³/h
- Weight
- 420 kg
- Main motor
- 30 kW
YG1200
High-volume work
- Working width
- 1,200 mm
- Pump flow
- 250 m³/h
- Weight
- 450 kg
- Main motor
- 37 kW
YG1500
Maximum coverage
- Working width
- 1,500 mm
- Pump flow
- 300 m³/h
- Weight
- 500 kg
- Main motor
- 37 kW
Published specifications are reference values from the supplied English product catalog. Confirm the final configuration with our technical team before ordering.
View full model specifications →Applications
One platform, configured around the sediment
Tell us what is in the sludge and where it needs to go. We will help match the pump, front attachment and control package.
Industrial tanks
Remove settled material from confined process areas with remote observation and control options.
Ponds & lagoons
Recover storage capacity without relying on a conventional excavator at the waterline.
Sewers & channels
Work through narrow access points where compact tracked mobility matters.

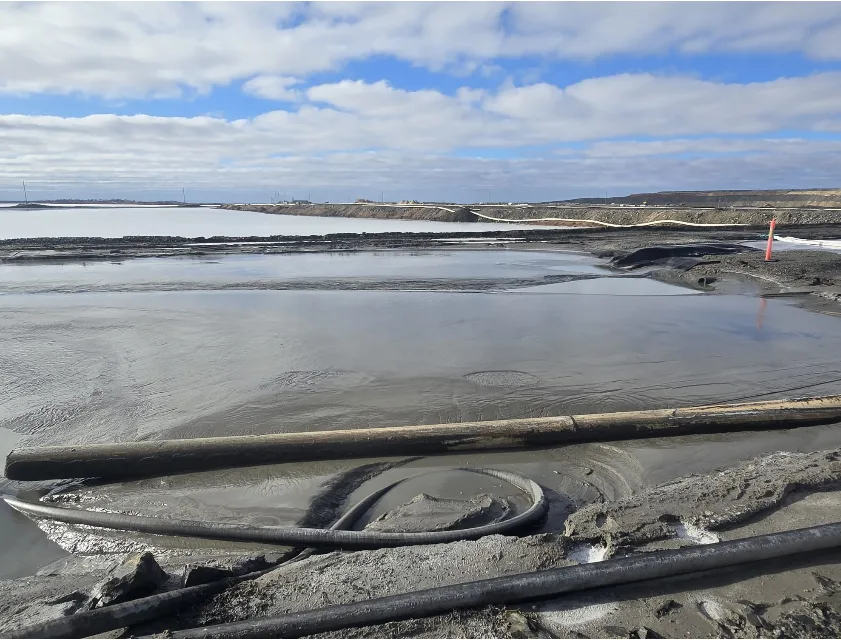

Tailings & heavy sediment
Match the attachment and pump to dense, abrasive or consolidated material.

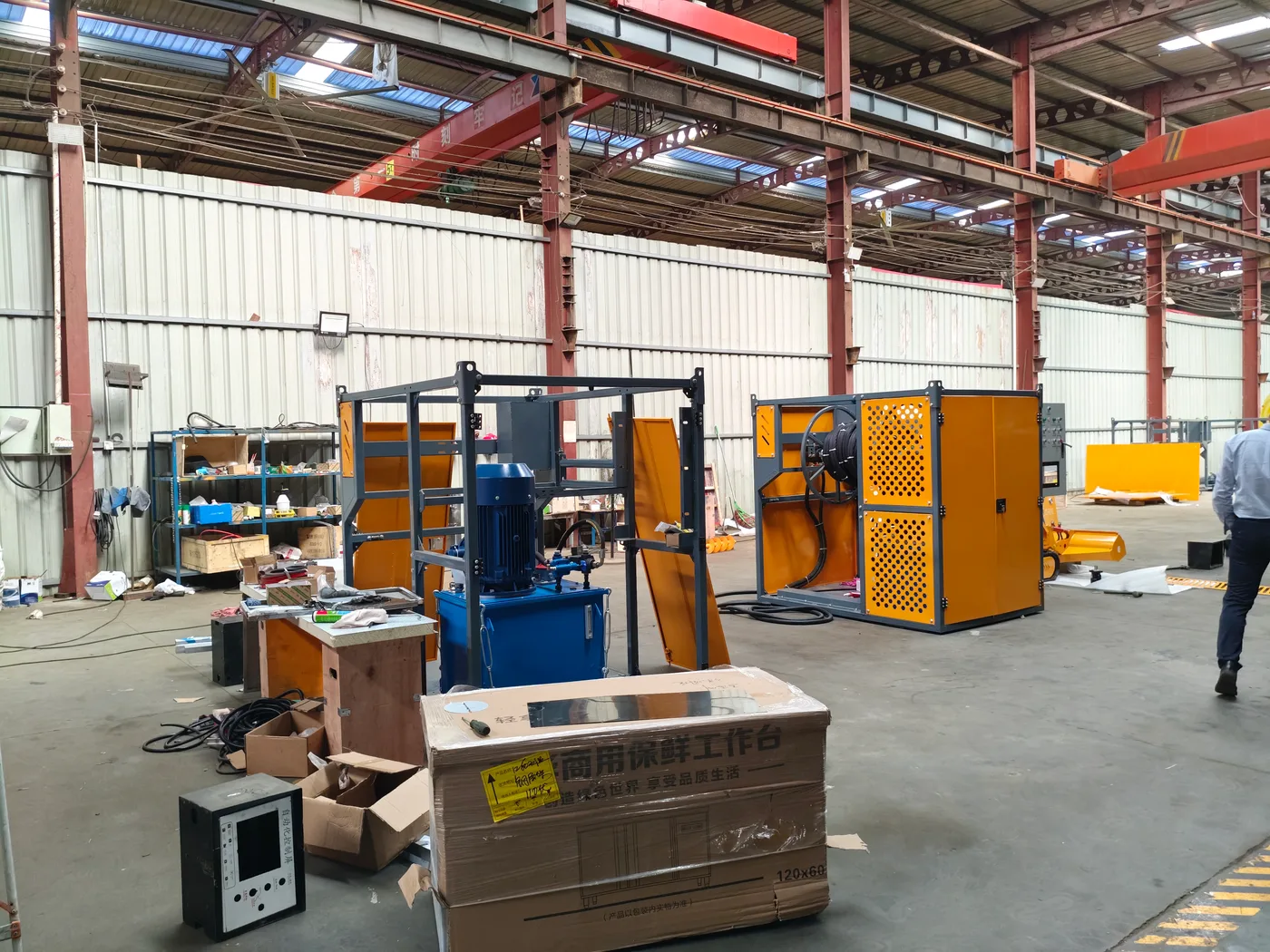

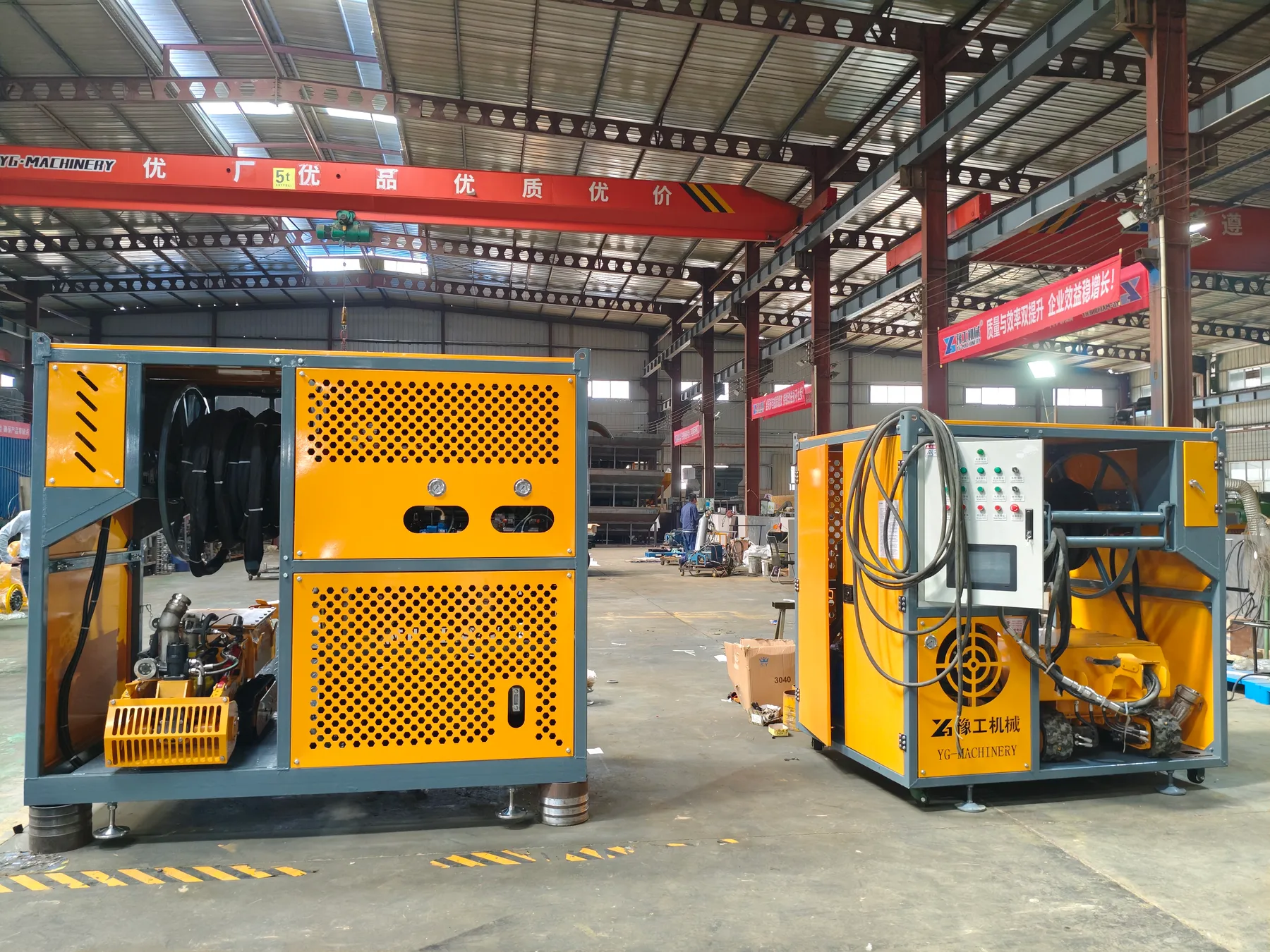

Actual factory productionFrom our workshop
See the equipment before it reaches your site
Our material library includes factory assembly, component details, tests and project footage. We use these records to help buyers understand what is included and what should be confirmed before production.
- Model and pump matching
- Remote-control and lighting checks
- Hose, cable reel and attachment review
- Operation guidance and after-sales support
A clearer buying process
From site conditions to a workable configuration
- 01
Describe the site
Share dimensions, water depth, sediment type, photos and videos.
- 02
Confirm the duty
We review particle size, flow, head, hose length, power and access.
- 03
Review the solution
You receive a model recommendation and configuration to verify.
- 04
Build and inspect
Production, testing and shipping details are confirmed before dispatch.
